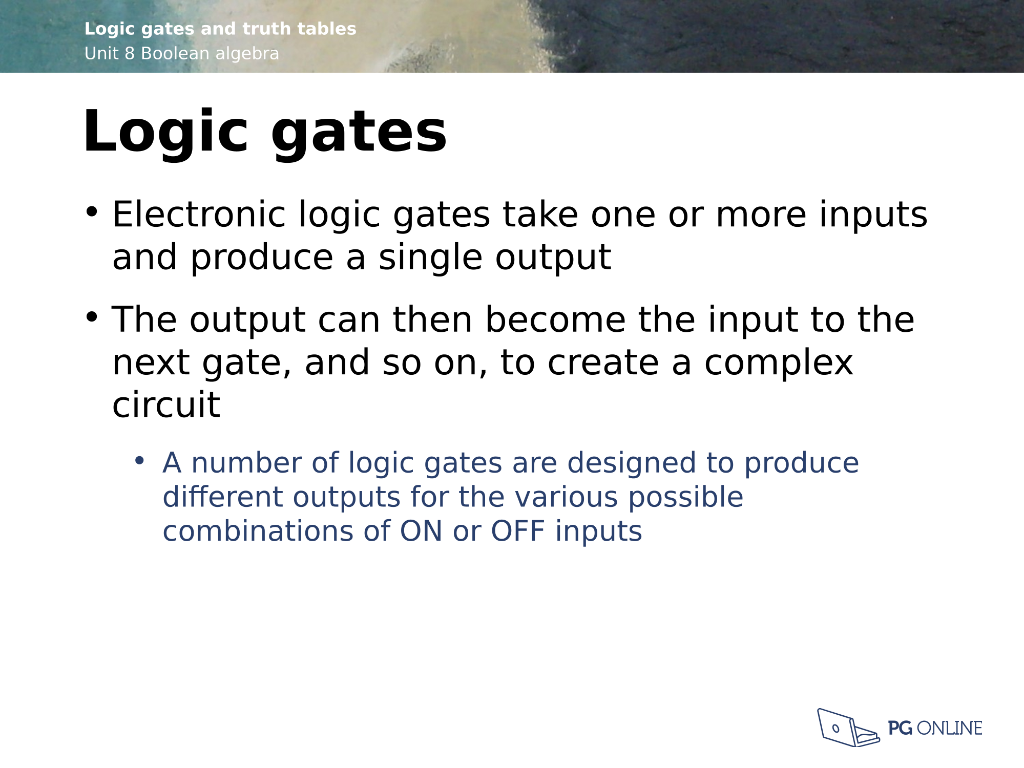

Logic gates and truth tables Unit 8 Boolean algebra Logic gates •Electronic logic gates take one or more inputs and produce a single output •The output can then become the input to the next gate, and so on, to create a complex circuit • A number of logic gates are designed to produce different outputs for the various possible
