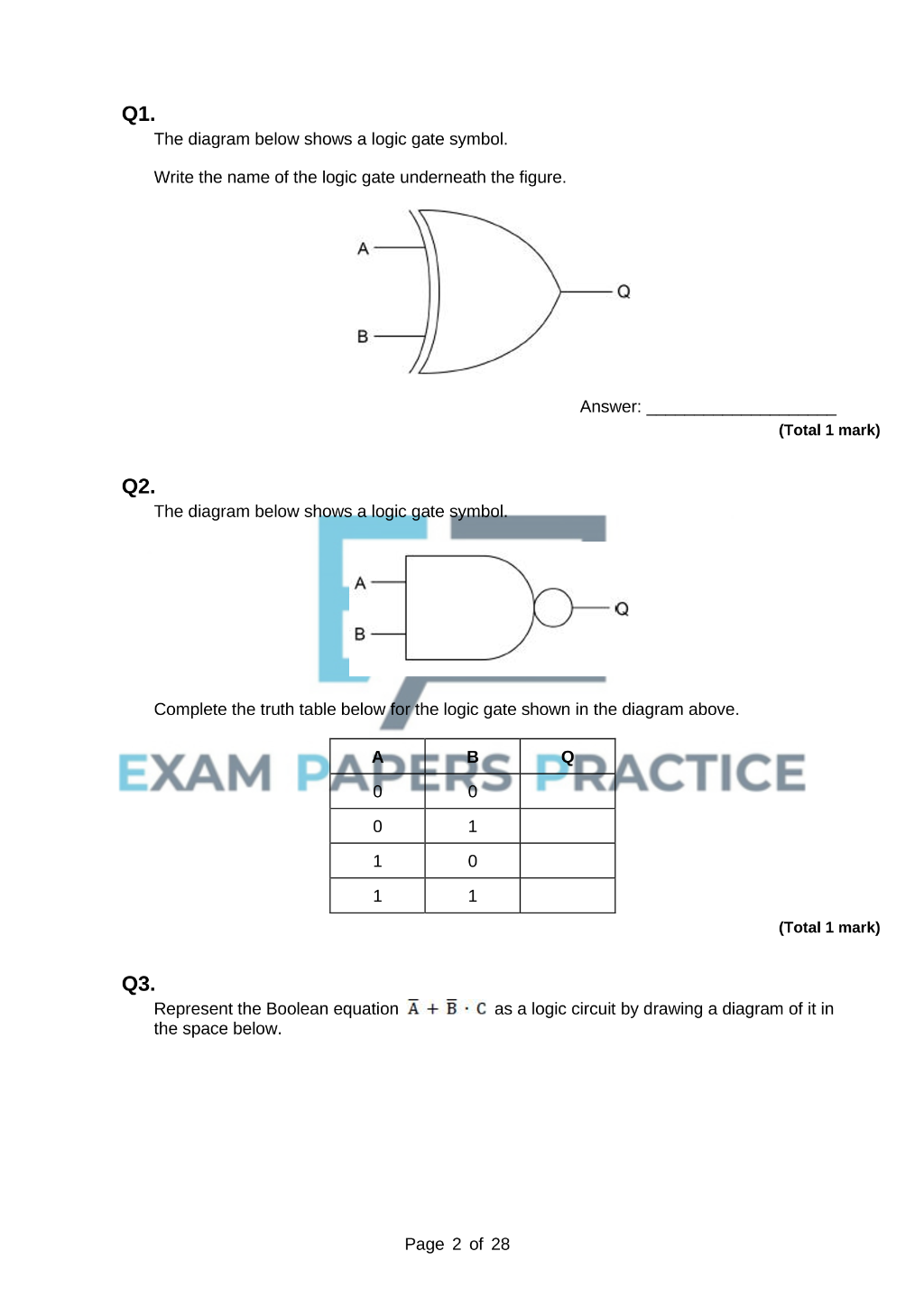

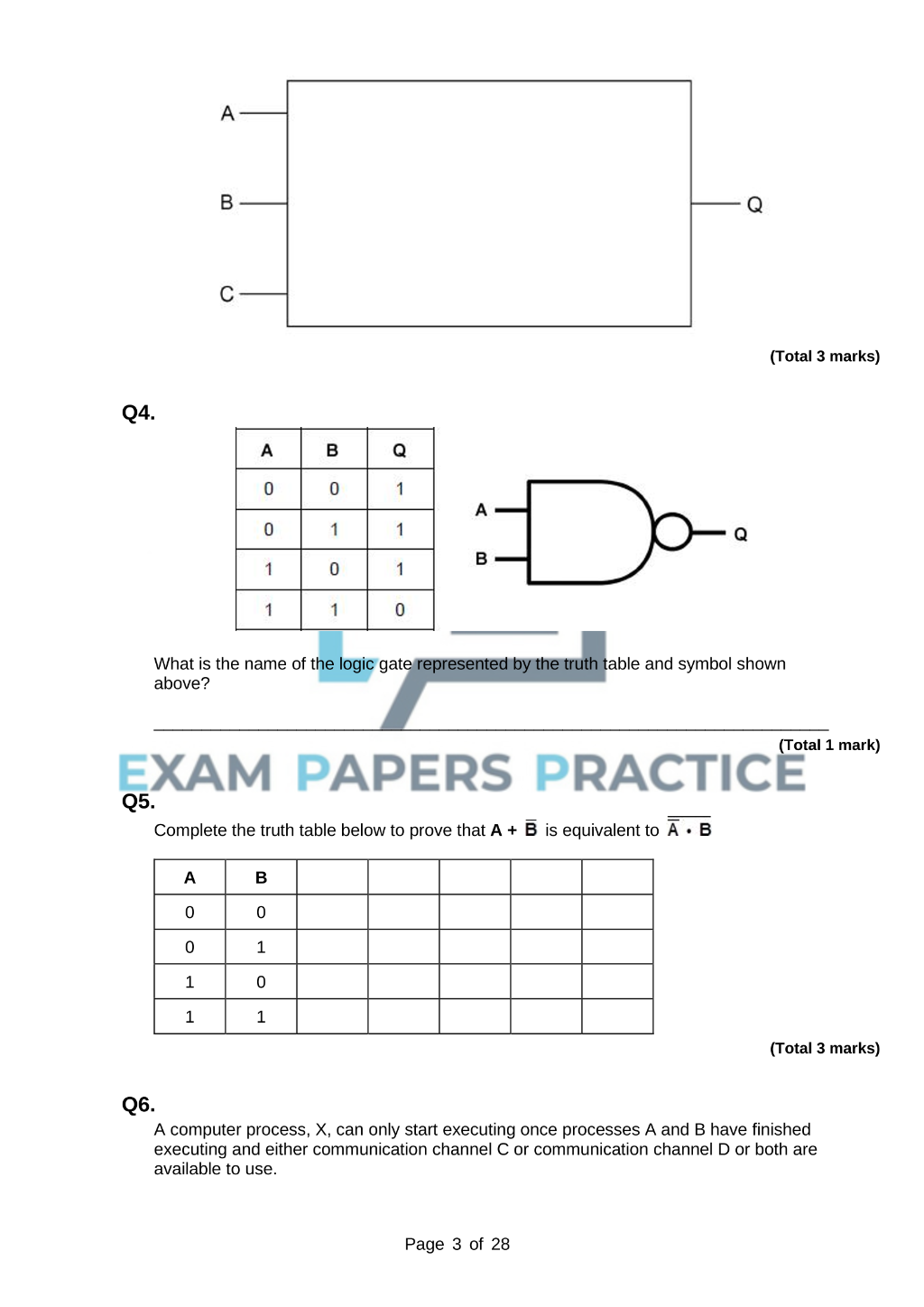

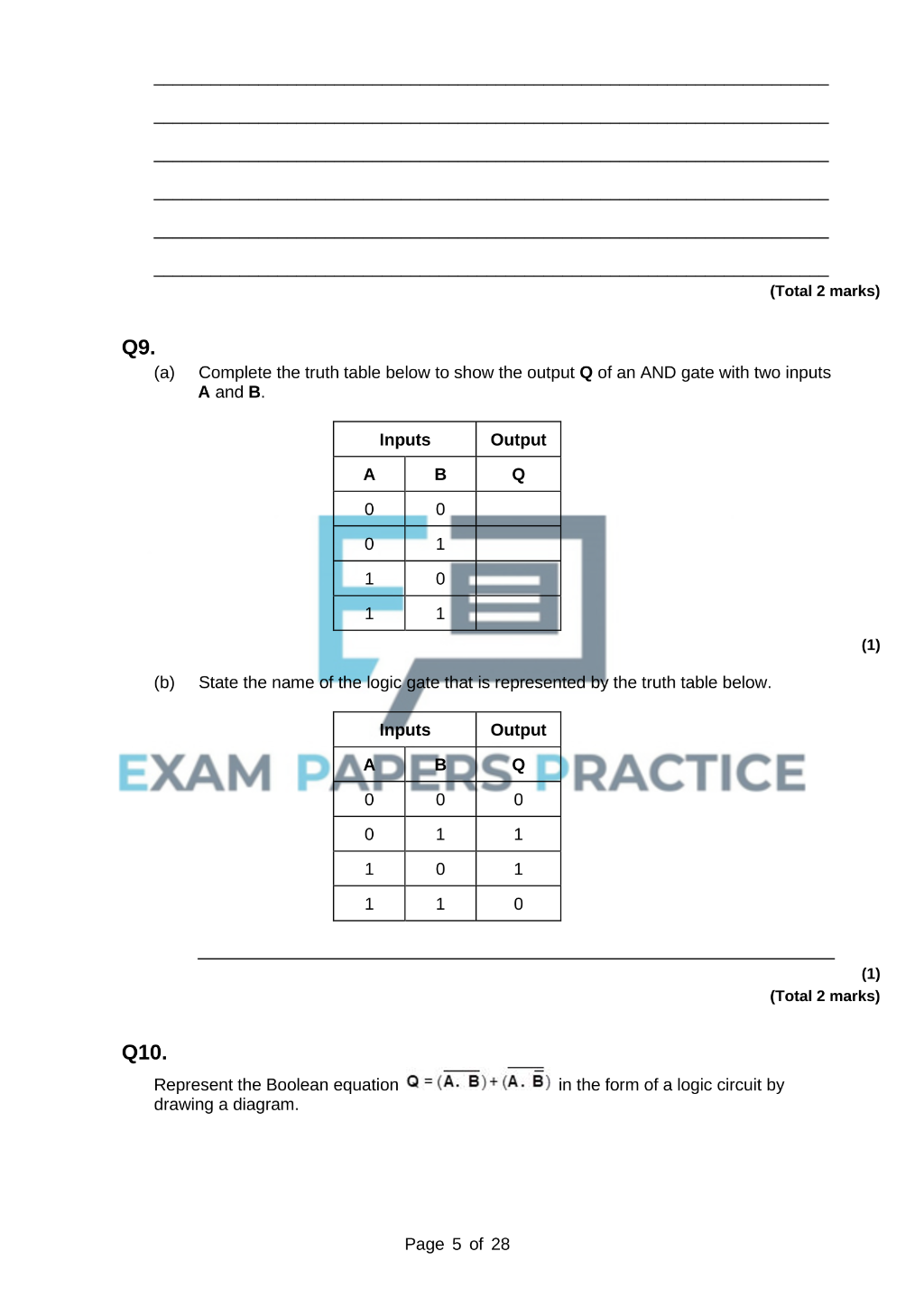

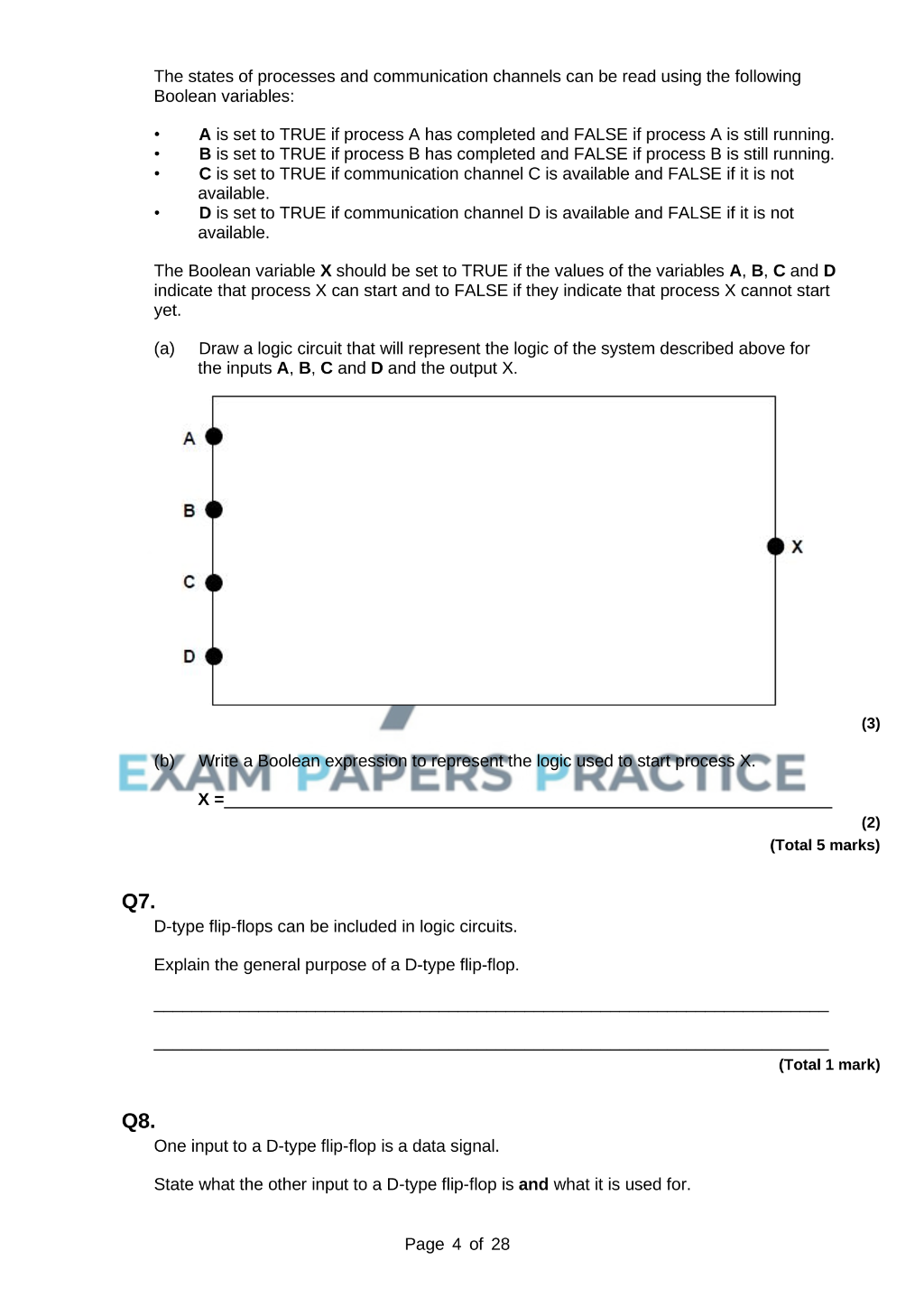

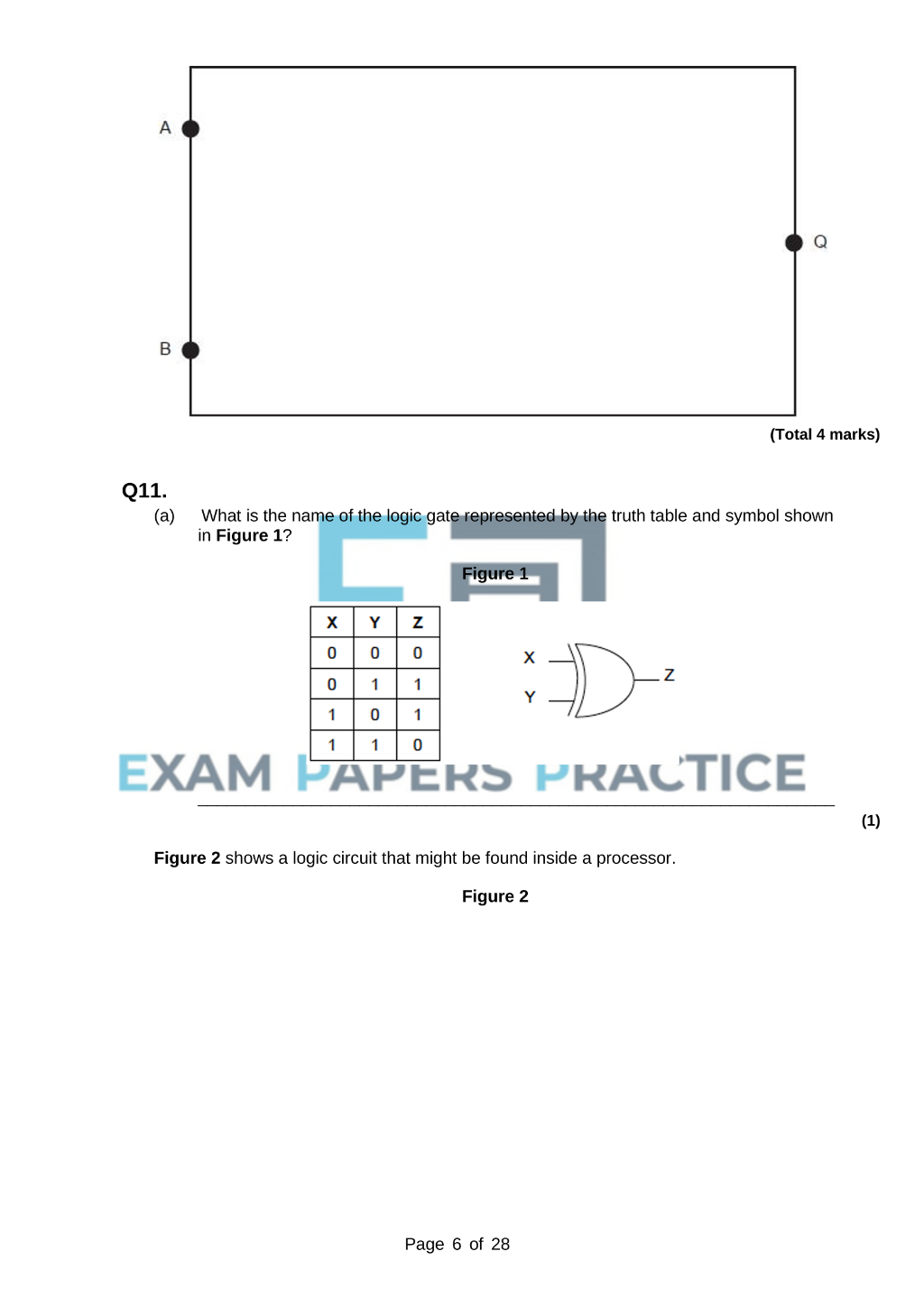

The diagram below shows a logic gate symbol. Write the name of the logic gate underneath the figure. Answer: _____ (Total 1 mark) Q2. The diagram below shows a logic gate symbol. Complete the truth table below for the logic gate shown in the diagram above. A B Q 0 0 0 1 1 0 1 1 (Total 1 mark) Q3.
